Regulator Products
Reduce air line pressure to acceptable levels.
RETURN TO MAIN PRODUCTS
Choose a regulator product from the drop down menu or from the chart below to learn more:
| RA3/RB3 Series |
Port Size: 1/4; Flows to 14 SCFM
RA3 (Aluminum), RB3 (Brass) |
| R03 Series |
Port Sizes: 1/8, 1/4; Flows to 15 SCFM |
R08 Series
Modular |
Port Sizes: 1/4, 3/8;
Flows to 44 SCFM |
R12 Series
Modular |
Port Sizes: 1/4, 3/8;
Flows to 40 SCFM |
R16 Series
Modular |
Port Sizes: 1/4, 3/8, 1/2;
Flows to 88 SCFM |
R18 Series
Modular |
Port Sizes: 1/4, 3/8, 1/2;
Flows to 97 SCFM |
| R26 Series |
Port Sizes: 1/4, 3/8, 1/2;
Flows to 185 SCFM |
R28 Series
Modular |
Port Sizes: 3/8, 1/2, 3/4;
Flows to 176 SCFM |
| R30 Series |
Port Sizes: 3/4, 1, 1-1/4;
Flows to 800 SCFM |
R39 Series
Modular |
Port Sizes: 3/4, 1;
Flows to 300 SCFM |
| R40 Series |
Port Sizes: 1-1/2, 2;
Flows to 1200 SCFM |
| SR1 Series |
SS, Port Size: 1/4;
Flows to 12 SCFM |
| SR2 Series |
SS Port Size: 1/2; Flows to 80 SCFM |
| AIR PILOT |
H12 Series
Modular |
Port Sizes: 1/4, 3/8;
Flows to 50 SCFM |
| R21 Series |
Port Sizes: 1/4, 3/8, 1/2, 3/4;
Flows to 220 SCFM |
| R31 Series |
Port Sizes: 3/4, 1, 1-1/4;
Flows to 700 SCFM
|
| R41 Series |
Port Sizes: 1-1/2, 2;
Flows to 1600 SCFM |
| COMMON P1 |
R09 Series
Modular |
Port Sizes: 1/8, 1/4;
Flows to 28.5 SCFM |
R19 Series
Modular |
Port Size: 3/8;
Flows to 62 SCFM |
| DIAL AIR |
R11 Series
Modular |
Port Size: 1/4;
Flows to 0.8 SCFM |
| R21 Series |
Port Sizes: 1/4, 3/8, 1/2, 3/4;
Flows to 220 SCFM |
| R31 Series |
Port Sizes: 3/4, 1, 1-1/4;
Flows to 700 SCFM
|
| R41 Series |
Port Sizes: 1-1/2, 2;
Flows to 1600 SCFM |
| PRECISION |
P12 Series
Modular |
Port Sizes: 1/4, 3/8;
Flows to 25 SCFM |
| P15/P16 Series |
Port Size: 1/4;
Flows to 27.5 SCFM |
P17 Series
High Flow |
Port Size: 1/4;
Flows to 14 SCFM |
P19 Series
High Flow |
Port Sizes 1/4, 3/8;
Flows to 80 SCFM | |
|

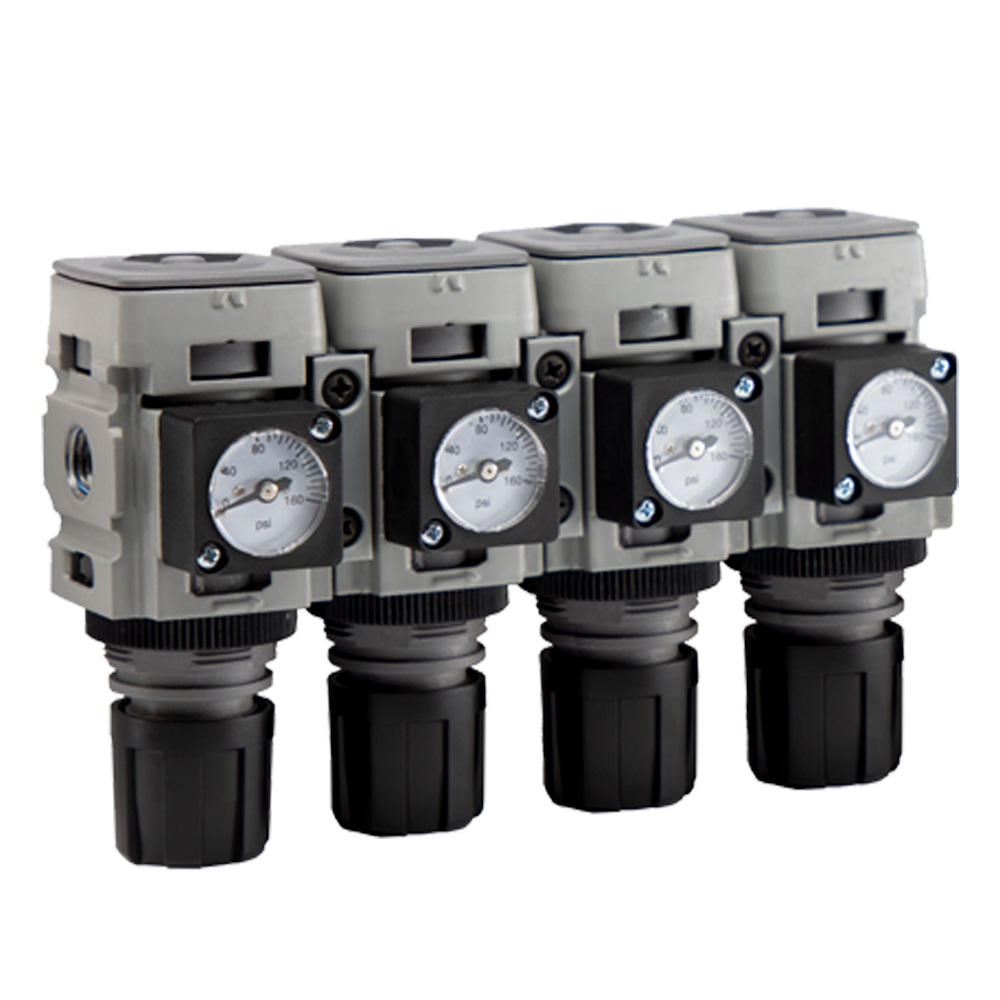

R09 Common-P1 Series
MODULAR
Port Sizes 1/8, 1/4; Flows to 28.5 SCFM
Features
This modular Common-P1 regulator includes:
- Balanced Valve Design
- 2 Regulated Ports
- Ease of Maintenance of Serviceability
- Light Weight
- Modern Design and Appearance
Specifications
Flow Capacity* | 1/8" | 27 SCFM (12.7 dm3/s) |
1/4" | 28.5 SCFM (13.4 dm3/s) |
Adjusting Range Pressure | 0 to 30 PSIG (0 to 2.1 bar)
0 to 60 PSIG (0 to 4.1 bar)
0 to 125 PSIG (0 to 8.6 bar) |
Maximum Supply Pressure | 300 PSIG (20.7 bar) |
Operating Temperature | 32° to 150°F (0° to 65.5°C) |
Port Size | NPT / BSPP-G | 1/8, 1/4 |
Gauge Port (2 ea.) | NPT / BSPT-Rc | 1/8 |
Weight | 0.66lb. (0.3 kg) |
* Inlet pressure 100 PSIG (6.9 bar). Secondary pressure 90 PSIG (6.2 bar). |
|
|
