Combination Units
2 piece units: filter/regulator + lubricator
3 piece units: filter + regulator + lubricator
RETURN TO MAIN PRODUCTS
Choose a product from the drop down menu or from the chart below to learn more:
| 2 UNIT |
| CB7 Series |
Port Sizes: 1/4, 3/8, 1/2;
Flows to 64 SCFM |
| D03 Series |
Port Sizes: 1/8, 1/4; Flows to 20 SCFM |
D08 Series
Modular |
Port Sizes: 1/8, 1/4;
Flows to 44 SCFM |
D12 Series
Modular |
Port Sizes: 1/4, 3/8;
Flows to 40 SCFM |
D18 Series
Modular |
Port Sizes: 1/4, 3/8, 1/2;
Flows to 175 SCFM |
D28 Series
Modular |
Port Sizes: 3/8, 1/2, 3/4;
Flows to 130 SCFM |
D39 Series
Modular |
Port Size: 1;
Flows to 250 SCFM |
| 3 UNIT |
C03 Series
Modular |
Port Sizes: 1/8, 1/4;
Flows to 20 SCFM |
C08 Series
Modular |
Port Sizes: 1/8, 1/4;
Flows to 44 SCFM |
C12 Series
Modular |
Port Sizes 1/4, 3/8;
Flows to 40 SCFM |
| C16/C17 Series |
Port Sizes: 1/4, 3/8, 1/2;
Flows to 64 SCFM |
C18 Series
Modular |
Port Sizes: 1/4, 3/8, 1/2;
Flows to 160 SCFM |
| C26/C27 Series |
Port Sizes: 1/4, 3/8, 1/2;
Flows to 128 SCFM |
C28 Series
Modular |
Port Sizes: 3/8, 1/2, 3/4;
Flows to 175 SCFM |
| C31 Series |
Port Sizes: 3/4, 1; Flows to 374 SCFM |
| C39 Series |
Port Size: 1; Flows to 250 SCFM | |
|

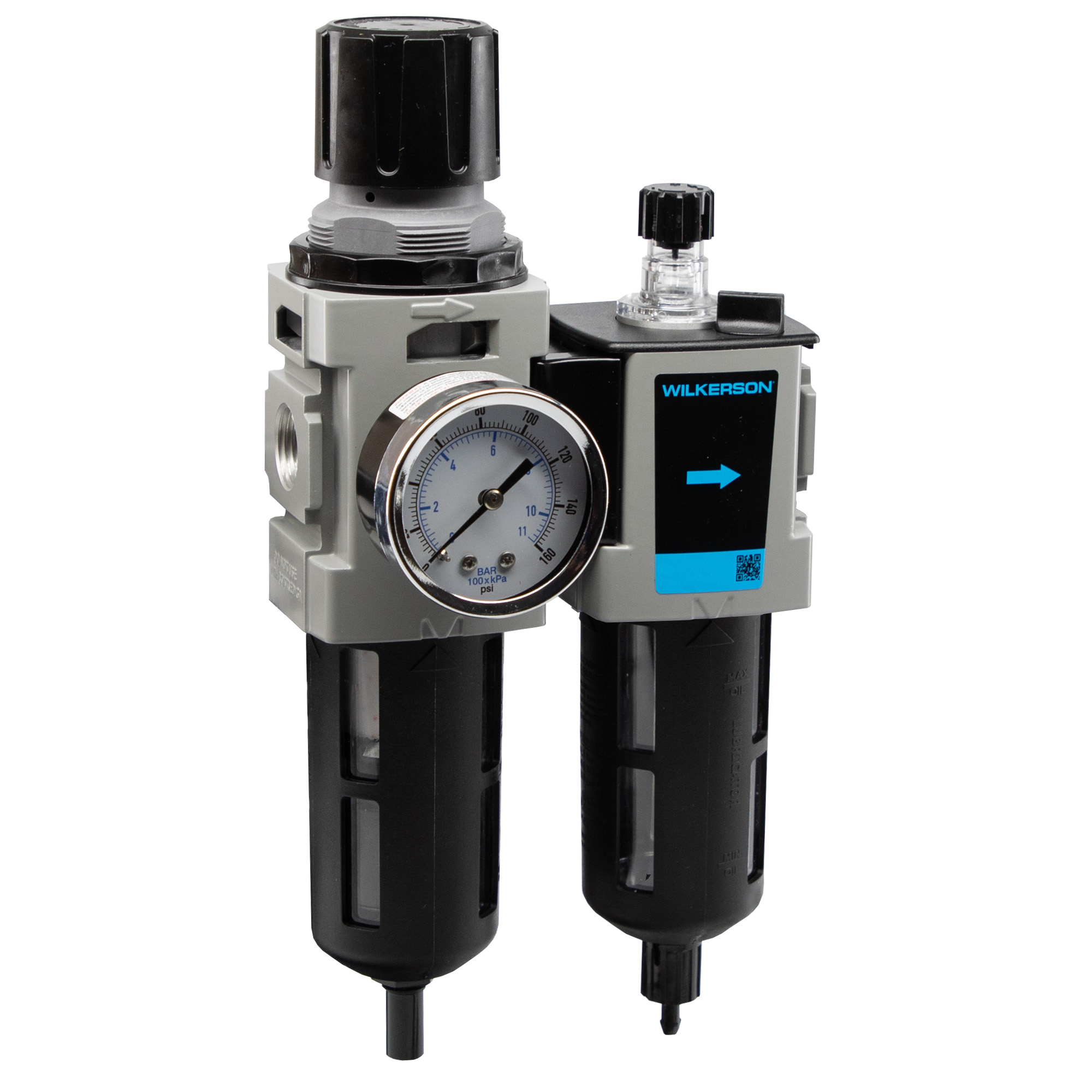

D18 Series
MODULAR
Port Sizes 1/4, 3/8, 1/2; Flows to 175 SCFM
Features
This modular 2 Unit FRL includes:
- Components Integrated into Single Unit
- Modern Design and Appearance
- Light Weight, Ready-to-Mount Assembly Comes Standard
with Pressure Gauge and Modular T-Bracket / Joiner Assembly
- High Flow Capacity
- Quick-Disconnect Bowl / Bowl Guard
- Joiner Assembly / Connector Patent No. 5,383,689
Specifications
Flow Capacity* | 1/4" | 100 SCFM (31.6 dm3/s) |
3/8" | 150 SCFM (49.6 dm3/s) |
1/2" | 175 SCFM (45.3 dm3/s) |
Maximum Supply Pressure | Plastic Bowl | 150 PSIG (10.3 bar) |
Metal Bowl | 250 PSIG (17.2 bar) |
Operating Temperature | Plastic Bowl | 32° to 125°F (0° to 52°C) |
Metal Bowl | 32° to 150°F
(0° to 65.5°C) |
Port Size | NPT / BSPP-G | 1/4, 3/8, 1/2 |
Gauge Port (2 ea.) | NPT / BSPP-G | 1/4 |
Standard Filtration | 5 Micron |
Weight | 2.98lb. (1.3 kg) |
* Inlet pressure 150 PSIG (6.9 bar). Secondary pressure 90 PSIG (6.2 bar).
"F" Series Filters, Type "A" 5 micron elements: All Wilkerson
Type "A" 5 micron elements meet or exceed ISO Class 3 for maximum
particle size and concentration of solid contaminants. |
|
|
